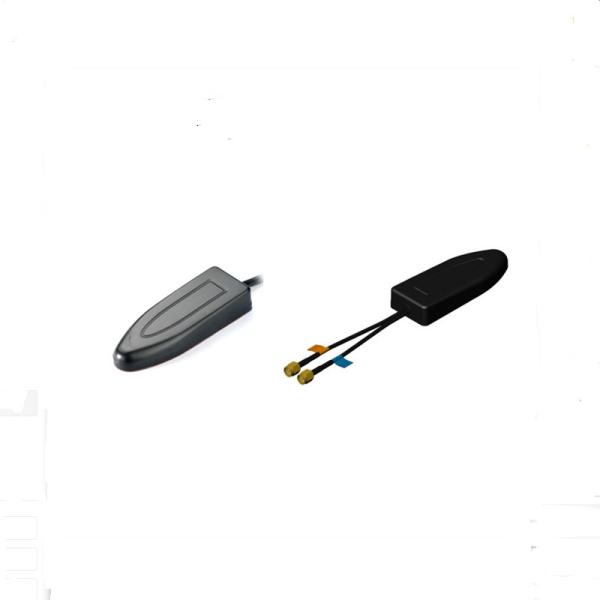

1. Product Name
External Car/Mobile/Auto/Vehical GPS/4G LTE Magnetic Mount MIMO Antenna
2. Description
--2.1 Applications
Location / Navigation(Active GPS)
AMPS (4G)
2G / 3G / 4G LTE Cellular Bands(4G)
NB-IoT Systems(4G)
GSM / UMTS /CDMA / WCDMA / PCS/ DCS (4G)
WIFI / Bluetooth (2.4GHz)
--2.2 Features
Active GPS
Low Profile and Small Size
Magnetic Mount (Adhesive Mount Optional)
No Ground Required
Indoor or Outdoor Use
3. Introduction
This GPS and 4G LTE MIMO antenna designed for MIMO devices operating on 700-2700MHz which severs 4G LTE, CAT,NB-IoT,3G,2G and CDMA as well as GPS/ GLONASS standards.
The low profile compact design and high quality adhesive mount or magnetic mount make this type of antenna ideal antenna solution for outdoor applications with quick and easy installationon a wide range of surfaces.
4. Specs
Electrical Properties
| 1.1 | Frequency | 1575.42 MHz / 700-2700 MHz |
| 1.2 | Gain (peak) | 28dBi / 2dBi |
| 1.3 | V.S.W.R | 2.5 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | RHCP / Linear |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | RG174 |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | Sticker or Magnet |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA / TNC / FAKRA |

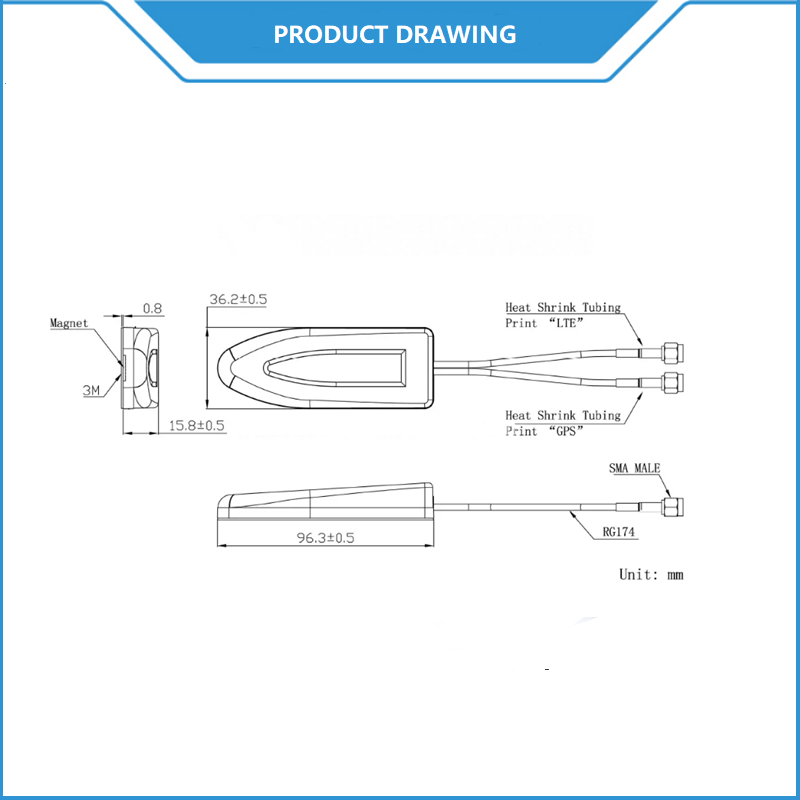

5. Antenna Drawing
6. Return Loss

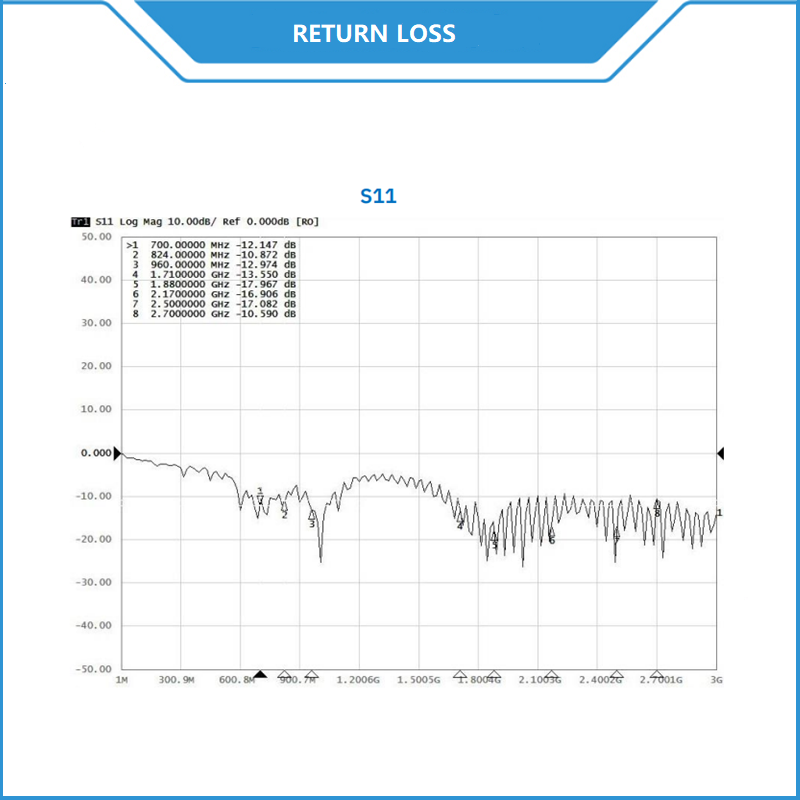

--6.1 4G LTE Antenna Return Loss

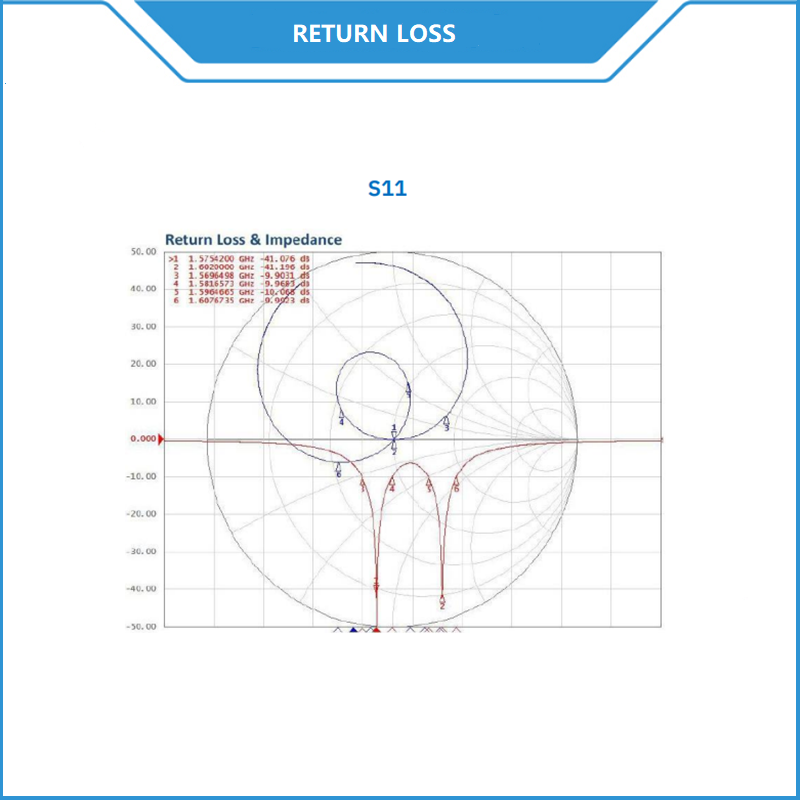

--6.2 GPS Antenna Return Loss
7. Radiation Pattern

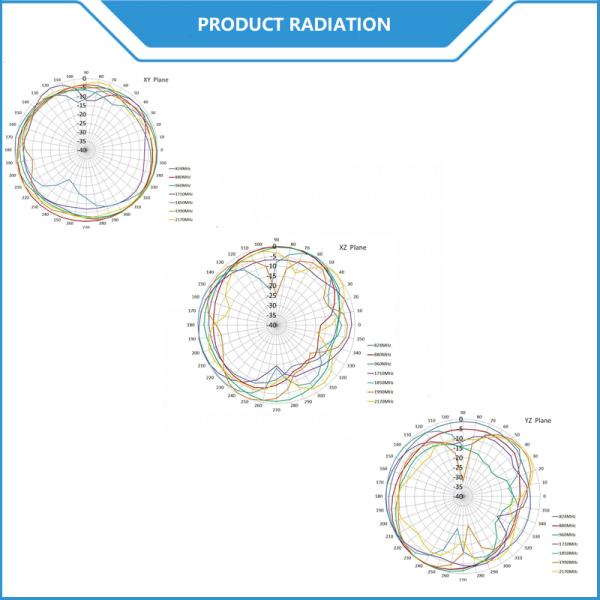

--7.1 4G LTE Antenna Radiation Pattern
--7.2 GPS Antenna Radiation Pattern
