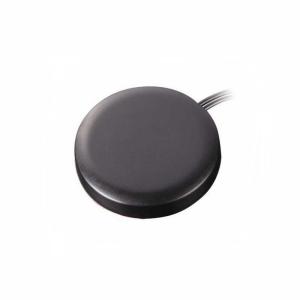

External Magnetic Mount GPS/GLONASS & 4G LTE/Cellular Antenna

Brand Name : MS

Model Number : MS-GPS-GSM-001

Certification : RoHS

Place of Origin : China

MOQ : 10 PCS

Price : USD$ 3 / PCS - USD$ 3.2 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : 1 PCS / BAG

Product Name : Magnetic Mount GPS/GLONASS 4G LTE Antenna

Keyword : GPS / 4G LTE Combination Antenna

Frequency Range : 1575.42 / 1602 / 700-2700 MHz

Gain : 28dBi (GPS/GLONASS) / 1.5dBi

VSWR : < 2.0

Impedance : 50 Ohm

Polarization : RHCP / Linear

Radiation Pattern : Omni-Directional

Cable Type : RG 174

Connector : SMA / TNC / FAKRA

Contact Now

1. Product Name

External Magnetic Mount GPS/GLONASS & 4G LTE/Cellular Antenna

2. Description

--2.1 Applications

For GPS / GLONASS:

Automatic Vehicle Tracking

Cargo Container and Trailer Tracking

Fleet Tracking Management System

For 4G LTE:

LPWAN, LTE, NB-IoT, M2M

Mobile Applications

Commercial Vehicles

Industrial Environments

Vandal Prone Environments

--2.2 Features

1*4G LTE Antenna

1* Active GPS/GLONASS (L1)

Magnetic Mount (Adhesive Mount Optional)

IP65 Rated

Dimensions: 80 * 14.5 mm

3m RG174 Coaxial Cable

Customized Cable and Connector Available

3. Introduction

This antenna is a combination low profile high performance GPS/GLONASS and 4G LTE Cellular (GSM / GPRS / CDMA / PCS / DCS / WCDMA / UMTS) antenna to simplify AVL or Fleet management antenna systems all over the world

It comes with magnetic mount as standard. We can guarantee that it will come up with your system and your environments.

4. Specs

Electrical Properties

1.1	Frequency	1575.42 / 1602 / 700-2700 MHz
1.2	Gain (peak)	28dBi / 1.5 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-Directional
1.6	Polarization	RHCP / Linear
1.7	Power Handling	1W

Mechanical Properties

2.1	Cable	RG 174
2.2	Antenna Cover	ABS
2.3	Antenna Base	Magnet
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA / TNC / FAKRA

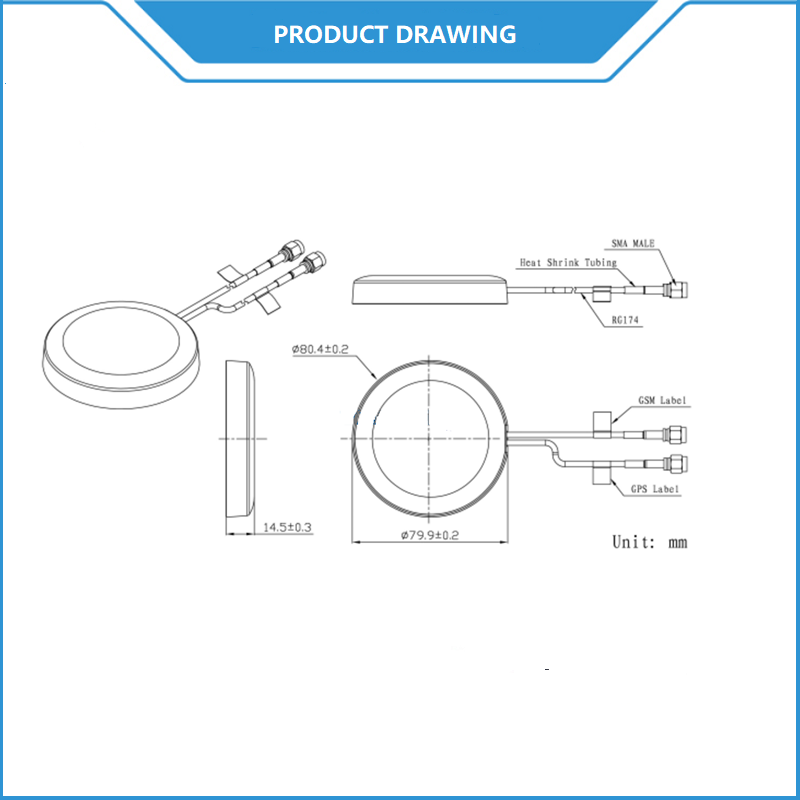

5. Antenna Drawing

External Magnetic Mount GPS/GLONASS & 4G LTE/Cellular Antenna

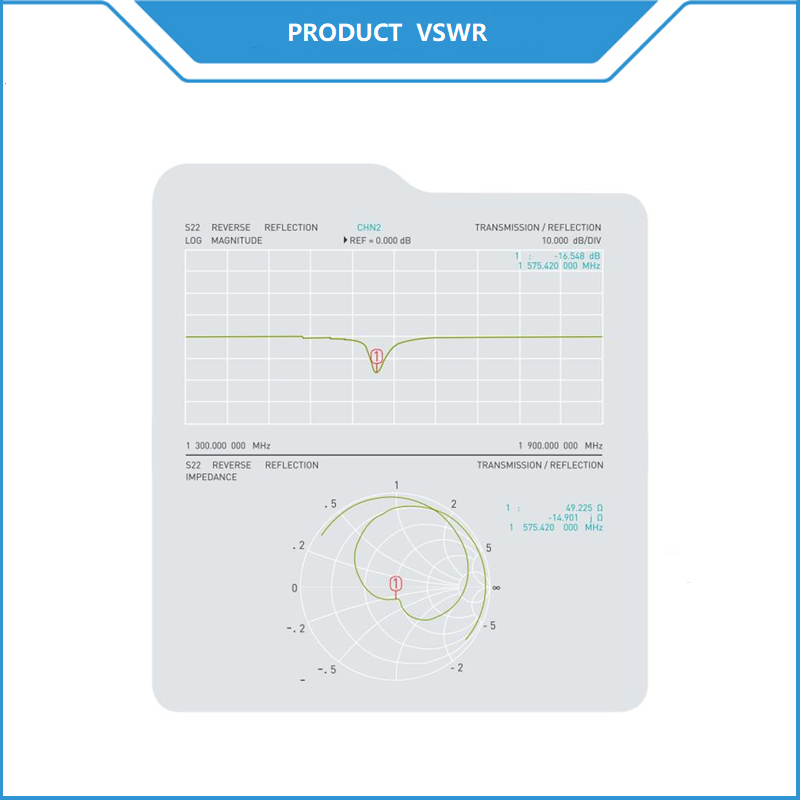

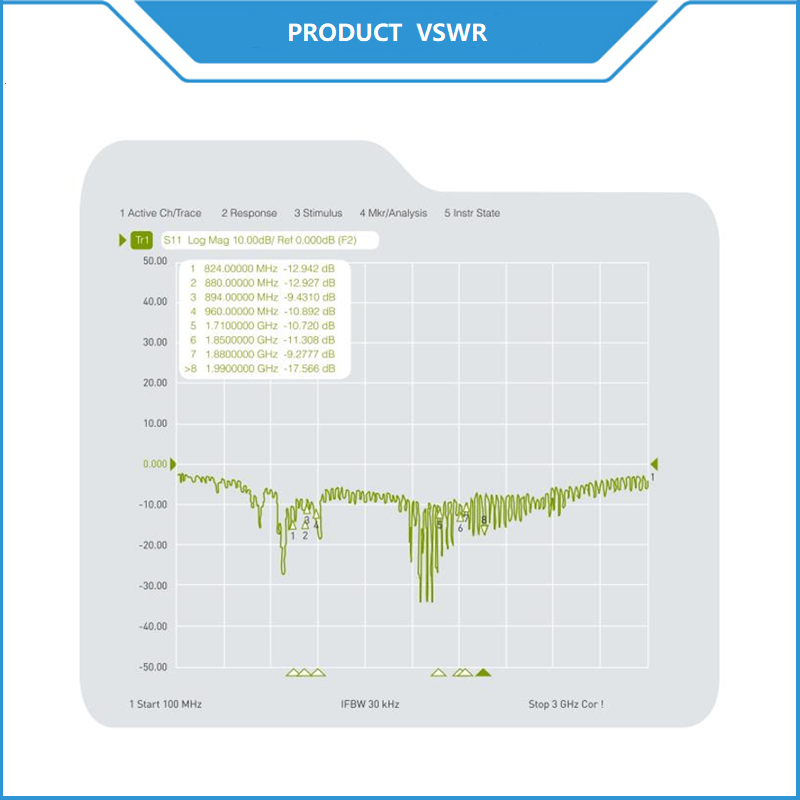

6. VSWR

External Magnetic Mount GPS/GLONASS & 4G LTE/Cellular Antenna

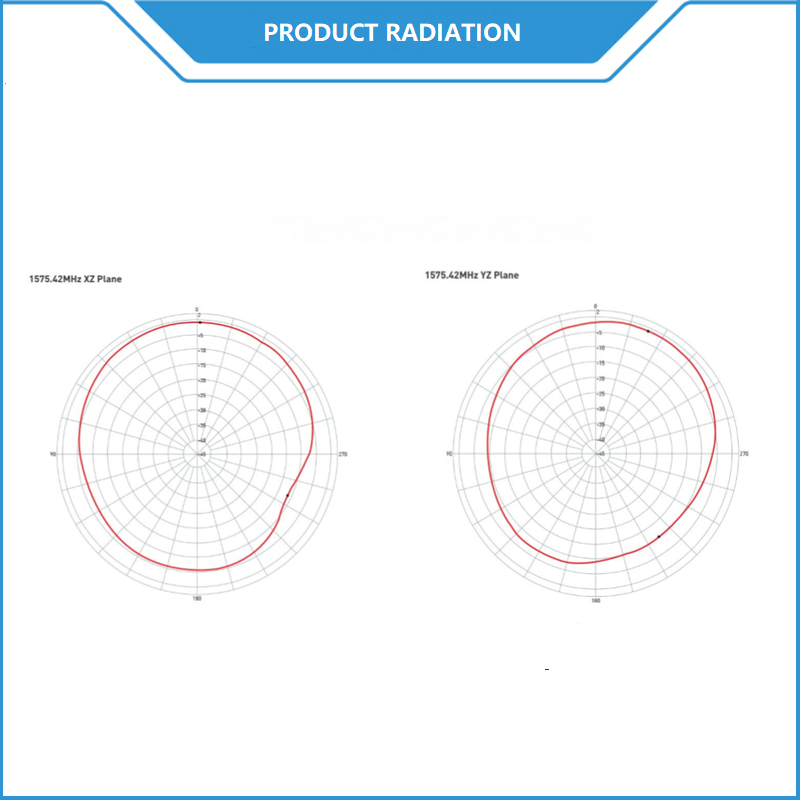

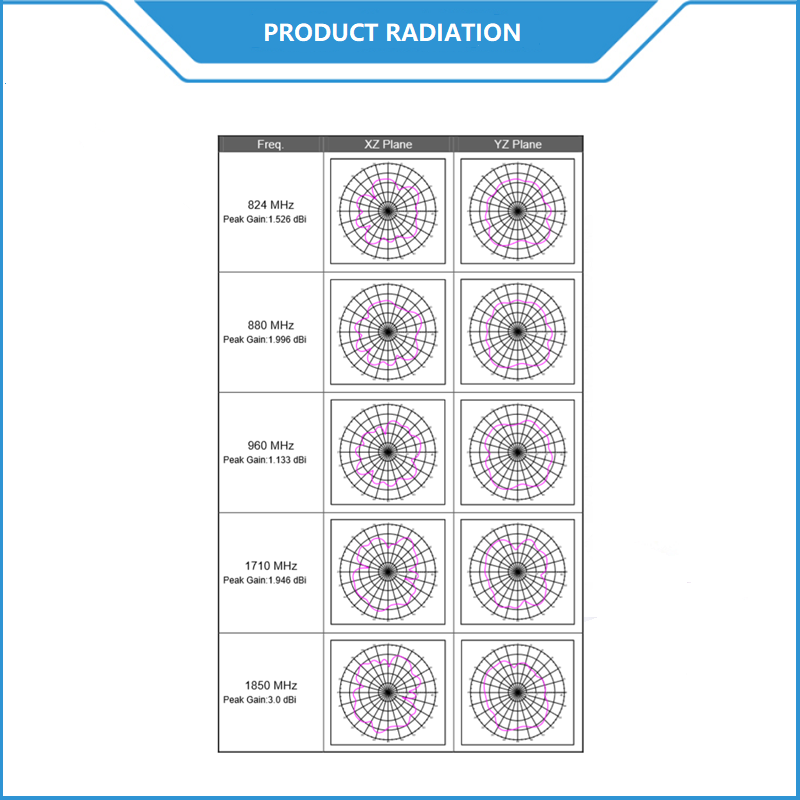

7. Radiation Pattern

External Magnetic Mount GPS/GLONASS & 4G LTE/Cellular Antenna
